Print head: 2 pcs espon XP600
Printing speed: 2.5㎡/h
Printing width: 30-33 cm
Printing Materials: AB film
Ink type: UV ink
Power: 220V/110V
Color : CMYK+W+GL

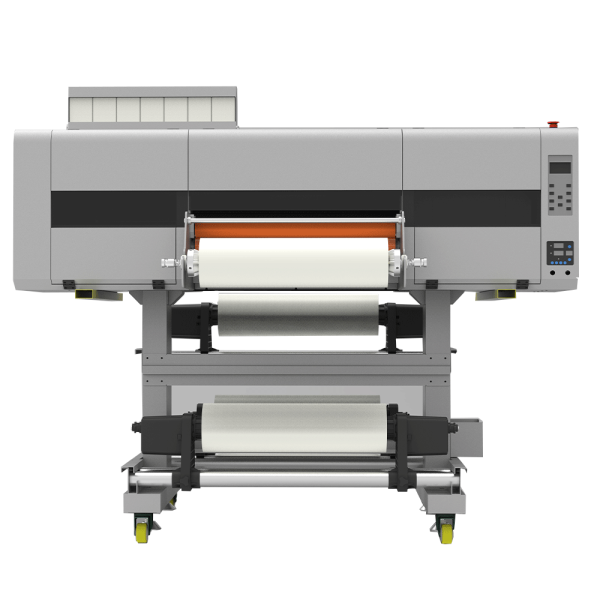

The uv dtf printer is a uniquely designed printer, which uses the AB film as a carrier to print the pattern on the A film, and then attaches the B film through the laminating device, and the ink is quickly solidified by the UV lamp, so that our pattern printing is completed.
After that, the pattern is cut out by a cutting machine, the pattern is glued on the substrate, and the film is torn off to complete the printing.
It has simple printing steps, wide application, adjustable size, short time and good effect.
Let's see the printing process of UV DTF printing:
1.Print the pattern on the direct transfer film first, and print in the order of white ink. color ink, & varnish.
2.After printing,put the PET film on the direct transfer film. It is recommended to use a laminating machine to press it. Of course, it can also be operated manually.
3.Cut out the desired pattern and paste it on the material to be pasted.
4.Press the pattern repeatedly, slowly tear open the film,finished.
