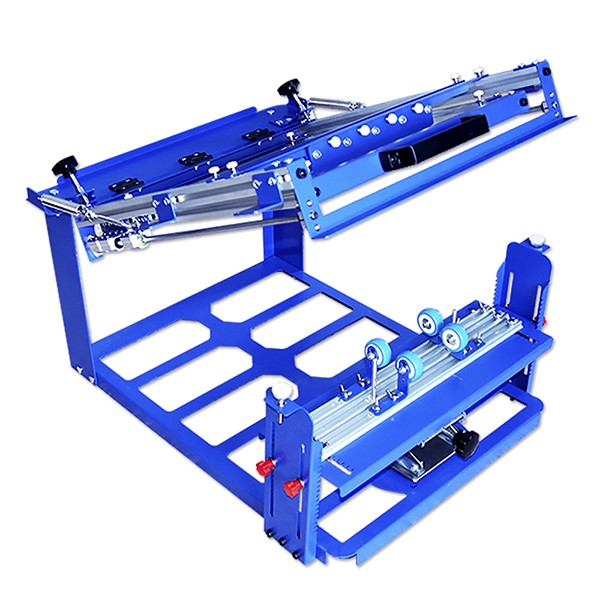

JM-MCP2430 curved surface screen printing machine

JM-MCP2430 curved surface screen printing machine

  • model number:JM-MCP2430
  • Color:Blue
  • accessory materical:stainless/galvanizing/nickel plating
  • net weight:28kg
  • groess weight:39kg
  • packing size:86*73*50cm
  • Description

    50Product description

    This curved screen printing machine is mainly used for printing cylindrical and conical products with a diameter below 150 mm.
    The maximum printing height of the machine is 270 mm, the length of the arc is 380 mm.41

    Product Specification

    1.This machine adopts the printing screen frame height positioning structure, the front part is equipped with the parallel placement plate, the whole machine is firm and stable in the printing process. Printing materials and tools such as ink buckets can be placed on the rear horizontal board of the main machine.42

    2.The printing plate frame uses the spring to pull and lift, matches the flower basket screw to adjust the lift strength of the screen plate , the lift angle of the screen plate can be controlled by adjusting knob, the operation is easier. The spring tension on both sides of the machine should be as consistent as possible after installation , otherwise it may cause distortion of the printing screen frame.

    43

    3.It is easy to install and remove the screen frame. Just put the screen plate into the back support plate from below of the printing plate rack, and then put the screen plate into the front support plate, tighten the screen plate fixing screw. (limited to the design requirements of the machine, the screen board of the machine must use the screen frame with the outer diameter of 560*410 mm and the height within 30 mm.) 2 screen frames are attached to the machine.44

    5.The back and forth sliding distance of the frame can be controlled by the positioning ring on the optical axis; The user can lock the positioning ring after adjusting the position of the screen plate and the substrate placement table. Especially add the collision rubber ring between the locating ring and the slide block, which can prevent the slide block from directly contacting with the metal locating ring during the back and forth sliding of the screen frame, and prevent the sound of metal striking with each other, and meanwhile protect the metal parts.45

    6.The printing scraper rack and the return ink rack adopt the double board clip type, the installation and unloading is convenient and quick, two sides of the main frame and the frame connect the screw middle additional spring, in the printing process, user can adjust the printing scraper and the return ink plate pressure according to the need.

    7.Push and pull handle can be installed vertically or in parallel according to the operator’s needs

    4647

    8.Substrate placement platform adopts knob lifting and locking structure. Substrate placement platform can be controlled by the lifting handle under the placement stage, first release the knob on both sides of the baffle, lift to the appropriate height, the locking knob on both sides of the baffle can be tightened to stabilize the lifting platform at this height, substrate placement platform on both sides of the height is consistent or not can be adjusted by the concave teeth on both sides of the baffle.

    Bottom of the substrate printing rack is designed around back and forth mobile , the  three long aluminum bars in the bottom installed in the lifting placement platform, both sides are substrate placement rack installation bar, the middle is the substrate limit column installation bar.48

    10.Substrate placement rack installation bar can be moved around 140 mm back and forth, in order to move as accurate as possible, according to the concave tooth on the placement table to make parallel movement.

    11.Limited post is installed on both sides of the substrates limited post installation bar, after adjusting all printing steps, place the substrate in the printing rack, move two limited posts  respectively to the two ends of the substrates and substrates surface with 1-2 mm spacing (Note: not too close please , otherwise it may affect the rotation of the substrates), using a wrench to tighten the limited post.

    Improve the accuracy of substrate placement, ensure that all printing positions are basically the same after substrate placement, and avoid deviation of printing positions caused by different substrate placement.

    12.There are two sets substrate placement wheels, one set is diameter of 50 mm blue rotation wheel, the other set is diameter of 26 mm white rotation wheel, two sets rotation wheel can be installed in the placement of the main frame and additional frame, users can replace according to the needs of adjustment.49

    13.The attached plate configured by the machine is used in conjunction with the substrate placement in the main frame, which is mainly used for printing products with conical shape. The attached plate can be connected with the main frame vertically with two screws, or cross connected with the italic body of the main frame with one screw.

    14.The machine has been fully adjusted before leaving the factory. The customer only needs to install the spring and screen frame landing board for use.

    Feature

    The main body of the machine uses advanced electrostatic spraying metal surface treatment, acid and alkali resistance, corrosion resistance, clean resistance, no rust, can be used for a long time; Some parts are made of stainless steel and aluminum alloy.

    Equipped with a full set of installation tools and detailed installation instructions; Easy installation without additional tools.

    Export to Europe and America standard fumigation-free wooden box packaging, all kinds of metal parts in the box are individually packaged or placed in isolation to ensure that all kinds of metal parts do not contact directly;

    Application

    Curved screen printing machine is mainly used for printing cylindrical type, cone type products; Such as a variety of plastic, glass, metal materials made of cylindrical, conical shape products, including wine bottles, medicine bottles, cosmetics bottles and other packaging bottles; Mugs, thermos mugs, beer mugs, red mugs, etc. Glass tube, pen ,ballpoint pen, fishing rod, bat and other small cylindrical products;
    For cylindrical or conical type products, the printing surface has a large concave or convex, the printing surface has spots and other non-plane printing is not suitable for the machine.

    5

    Our Advantages

    –Improve the accuracy of substrate placement, ensure that all printing positions are basically the same after substrate placement

    –Substrate placement faster, no need to mark or manually adjust, directly put into the substrate.limit the substrate in the printing process does not deviate.

    –The attached plate configured by the machine is used in conjunction with the substrate placement in the main frame, which is mainly used for printing products with conical shape. The attached plate can be connected with the main frame vertically with two screws, or cross connected with the italic body of the main frame with one screw.

    –The machine has been fully adjusted before leaving the factory. The customer only needs to install the spring and screen frame landing board for use.

    –The main body of the machine uses advanced electrostatic spraying metal surface treatment, acid and alkali resistance, corrosion resistance, clean resistance, no rust, can be used for a long time; Some parts are made of stainless steel and aluminum alloy.

    –Equipped with a full set of installation tools and detailed installation instructions; Easy installation without additional tools.

    –Export to Europe and America standard fumigation-free wooden box packaging, all kinds of metal parts in the box are individually packaged or placed in isolation to ensure that all kinds of metal parts do not contact directly
