4 color and 2 station screen printer with Micro-Registration

Product Description

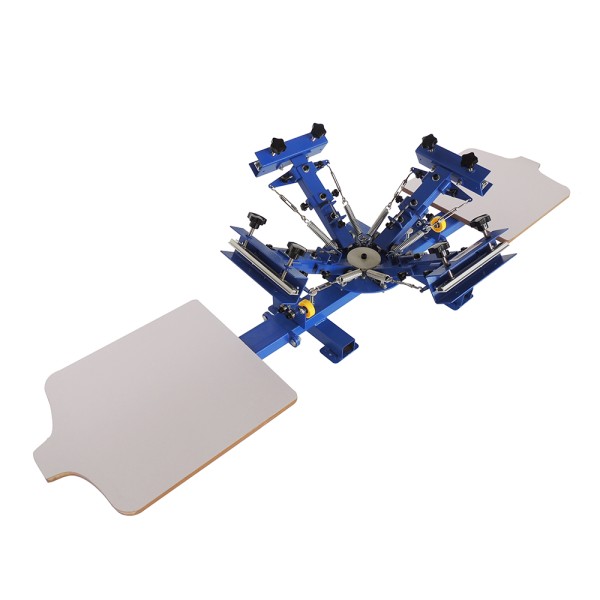

4 Color 1 Station Rotary Screen Press can install four screen plates, it can rotate independently after installation, which is available for four color overprint and design proof of screen printing business.
This machine is the extension of overprint flat screen press, and can be applied to various substrates need overprinting, especially T-shirt. This machine has special T-shirt pallet, which is more convenient and accurate for location when printing.

Product Application

the machine can be applied for screen printing on clothing, woven, metal, paper, copybook, plastic, wood, glass, ceramic tile, leather and various plane products, especially suitable for small businesses and individual printing shop.

Product Specification

HDF pallet size	45x60cm
Max frame size	50x60cm
Max image size	40x45cm
carton	60*59*40cm
weight	36kg

Main Feature

1.Simple, but rational and more practical constructions
2.Table type and combinatorial design saves place and convenient for transportation.
3.Screen printing platen layer can rotate independently which is easy operated with higher efficiency.
4.Adjustable double-spring devices are available for screen frames of different weight.
5.Screen clamp can be moved up and down, which is suitable for screen frame within 1.2″ (3cm) thickness.
6.Big supporting device keeps the machine stable and in balance.
7.All-metal construction, advanced electrostatic spraying and electroplating, durable, easy to clear and no rust.
8.Equipped with full set of installing tools, manual instructions, installation and operation videos.
9.Excellent packaging: All our equipment are perfectly packaged by high-strength five-layer corrugated carton, inside with standard soft and hard foam and three-ply board, all metal parts are separately packaged, which guarantees product safety during transportation.

Packing&Shipping

1 strong carton box (60*59*30cm)
