Fully-auto screen printer

Machine Specification:

Model : JM-LR5065

♦ MAX Printing Area : 500*650mm

♦ Minimum Printing Area: Less than 20*35cm need Explain in advance,can adjust.

♦ precision of repeat-printing:<0.05mm

♦ Platform size:590*860mm

♦ Max Frame Size:750*1030mm

♦ Thickness of Substrates:00.5~2mm

♦ Max Printing Speed:900pcs/h

♦ Degree of Squeegee:0~30

♦ Degree of Screen vertical and horizontal :+-10mm



Energy Specification:

♦ Power :3N-50Hz 380V 1.5KW

♦ Gas source Pressure :0.4-0.6 Mpa



Dimensions and weight:

♦ Dimensions(L*W*H):2300*1800*220 mm

♦ Weight(kg ):900

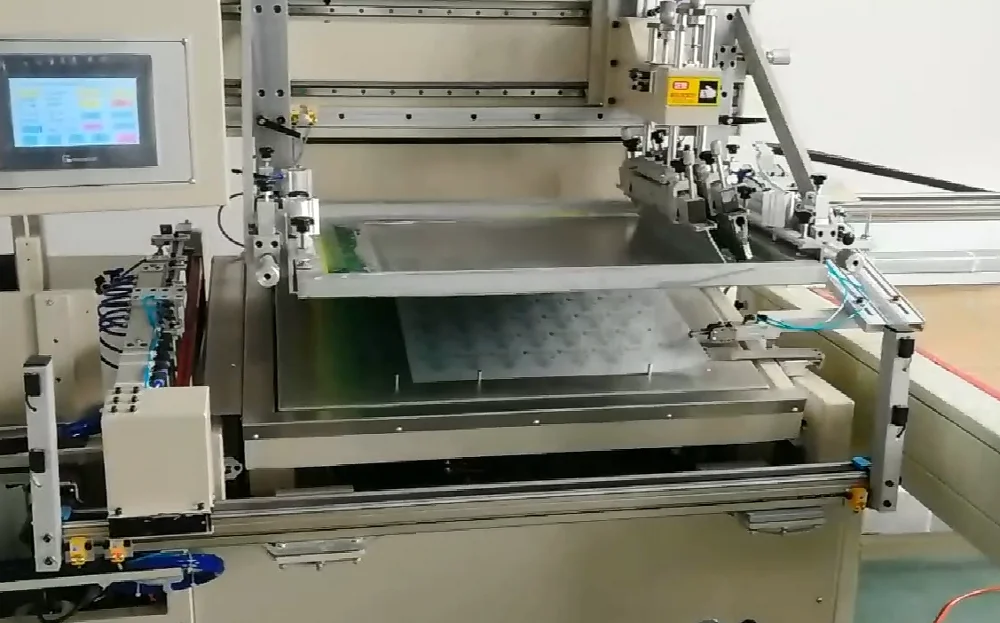

The machine is consist of three parts:

Automatic loading system ---High precision Screen Printing Machine---automatic unloading system

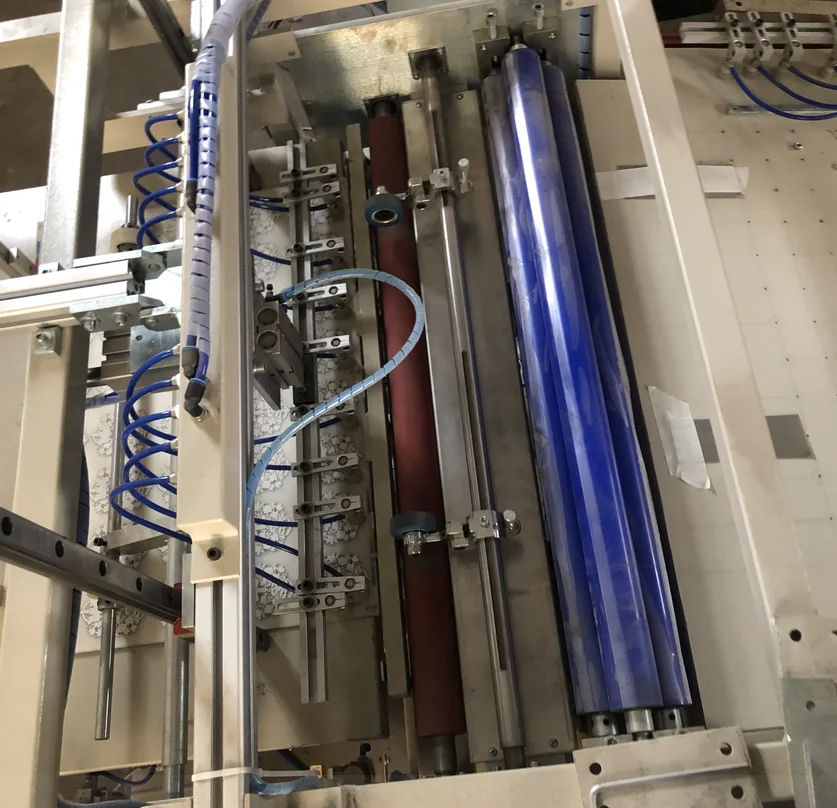

Equipped with dust collection device	Equipped with camera for easy micro-registration



Features:

1. The platform can automatically lift,decline by electromotion.

2. The working table/platform is made of stainless steel with honeycomb for vacuum sorption

3. A registration pin is installed to keep precise registration and

    enssure the precision of repeat-printing is 0.05mm.

4. The screen plate has support positioning, suitable for Precision multi-color printing

5. The screen plate can be adjusted front and back, left and right, and level location.

6. Power vacuum adsorption,make sure accurate color registration

7. Squeegee angle is adjustable

8. Adjustable left and right stroke. / front and back stroke.

9. Lifting structure is designed in double-pillars, high accuracy, stable operation

10. Constant pressure device of the ink blade, made sure the pressure in the printing is steady

11. Four digital auto-counter, calculate the printing quantity.

12. Touch screen with PLC controlled. Durable and simple maintenance

13. Working speed fast, stable and low noise

Application :



Application:

♦ This silk screen printer series are widely used in the electronics, advertising, package printing, sports equipment, toys, stationary gifts, metal processing industries.

♦ Suitable for printing on all kinds of flat materials, print on metal, wood, paper, plastics, membranes switch, PCB, PET, Playing, wedding, business and  DC card, nameplate ,also printing on bags, non-woven fabrics, ceramic decals, glazing plate glass, light guide plate, PET heating transfer film, label and panel , refrigerator and air-conditioner decals, plastic sheet, and other products with the material of  PVC, which have high requirement in overprinting.

♦ Suitable for photo sensitive solder mask, PCB legend, ,FPC line, LGP, membrane switch, ceramic decal and packing decoration
